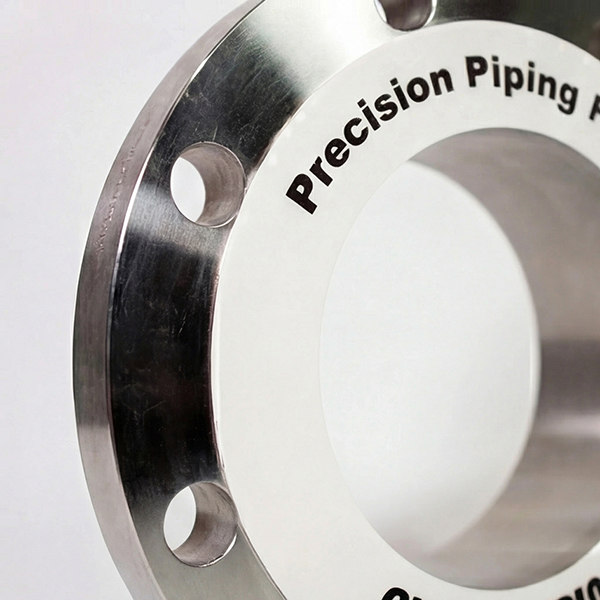

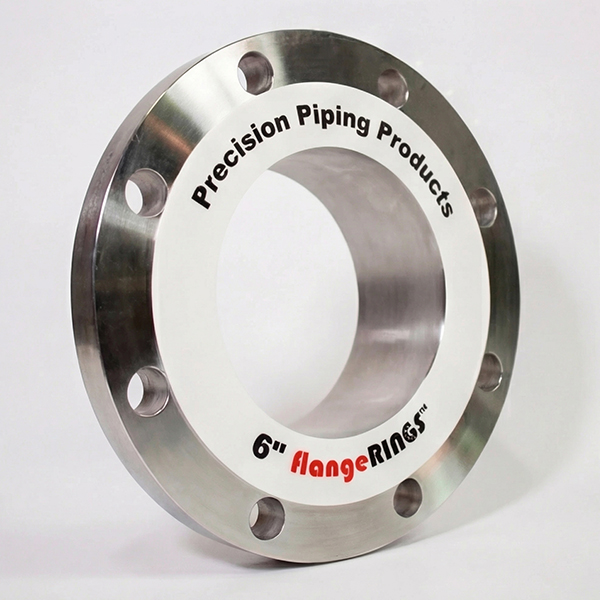

flangeRINGS™ +VCI - Self Adhesive Gasket Surface Protection

flangeRINGS™ +VCI were created in the wake of the growing popularity and success of P3 flangeDOTS® +VCI. Our flangeRINGS™ are made from the same self-adhesive blast material and prevent corrosion with a VCI additive. The ring allows you access to the interior of pipe spools and mechanical equipment during welding, fabrication, inspections, and cleaning.

There is no need to waste time trimming or cutting because these are cut specific to your equipment size. Our flangeRINGS™ are also UV resistant for extended protection in the sun.

Read More

Here are a few benefits to using flangeRINGS™ +VCI:

  • 2 in 1 self-adhesive protection
    • Protects against flange damage
    • Provides flange face corrosion protection
  • Safe for stainless steel and specialty metals (Low Chloride)
  • VCI additive prevents flange face corrosion (Secret Sauce)
  • Ideal for internally coated pipe, slip rings, etc.
  • Precision Cut – No trimming required (Safety Benefit)
  • Can be used for long-term indoor or short-term outdoor storage
  • Available in all pipe sizes
    • flangeRINGS 36” and below fit all pressure classes
  • Part of a patented preservation system (Long-Term Storage Option)
    • flangeRINGS/flangeBUMPER/multiNUTS



Before using our flangeRINGS…Clean, Inspect, Protect

  1. Clean flange face
  2. Inspect flange face using P3-GIT
  3. Apply P3 flangeRING




FlangeRINGS, Gasket Seat Surface Protection FlangeRING, Gasket Seat  Surface Protection Sizes FlangeRINGS, Self Adhesive & Blast Proof Gasket Sear Surface Protection
ASME / ANSI B16.5 Flange Dimensions
Pressure Class: 150
flangeRINGS™ +VCI Part NumberNominal Pipe Size (Inches)Outer Diameter (Inches)Quote Request
P3-FR-035-00-2 1/2 1.375 RFQ
P3-FR-035-00-3 3/4 1.688 RFQ
P3-FR-035-01-0 1 2.000 RFQ
P3-FR-035-01-1 1 1/4 2.500 RFQ
P3-FR-035-01-2 1 1/2 2.875 RFQ
PP3-FR-035-02-0 2 3.625 RFQ
P3-FR-035-02-2 2 1/2 4.125 RFQ
PP3-FR-035-03-0 3 5.000 RFQ
P3-FR-035-03-2 3 1/2 5.500 RFQ
P3-FR-035-04-0 4 6.188 RFQ
P3-FR-035-05-0 5 7.313 RFQ
P3-FR-035-06-0 6 8.500 RFQ
P3-FR-035-08-0 8 10.625 RFQ
P3-FR-035-10-0 10 12.750 RFQ
P3-FR-035-12-0 12 15.000 RFQ
